Informations générales
Alias commercial mondial:
PSTX105-600-70
Type de produit étendu:
PSTX105-600-70
ID du produit:
1SFA898109R7000
Désignation du type ABB:
PSTX105-600-70
EAN:
7320500501313
Description du catalogue:

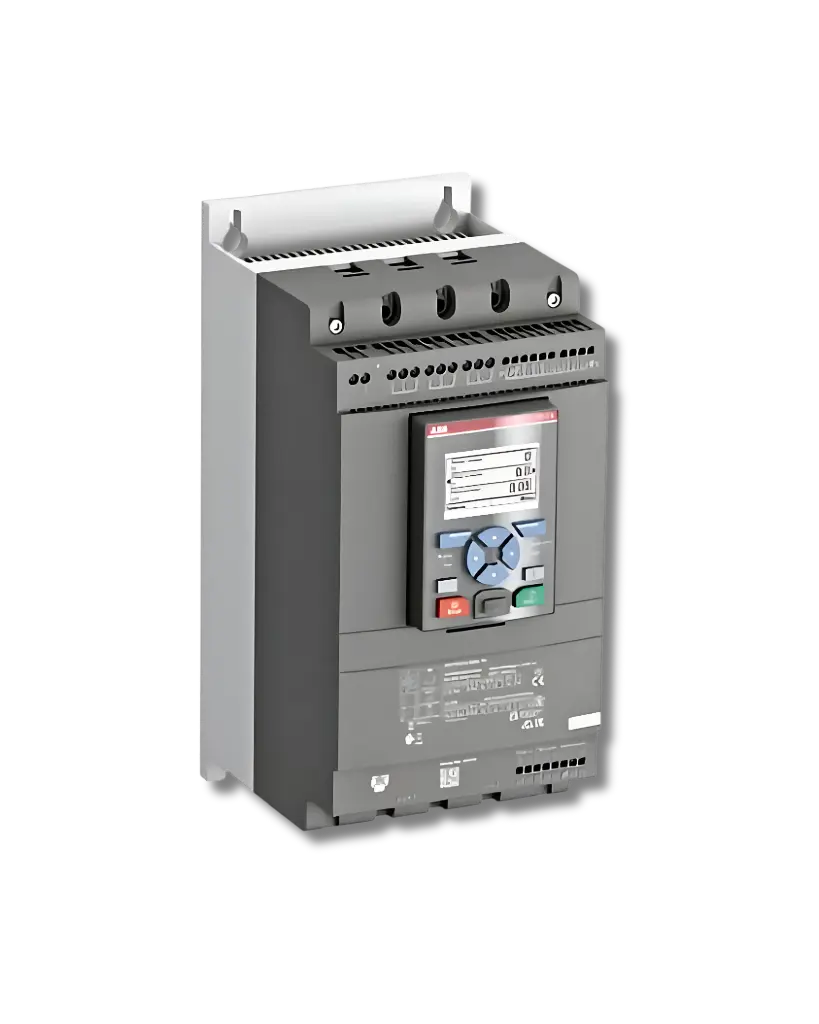

PSTX105-600-70 Softstarter - 105 A - 208 ... 600 V AC
Description longue:
The softstarter PSTX105-600-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has buil
t-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors
Caractéristiques
Dimensions
Largeur nette du produit:
150 mm
Hauteur nette du produit:
314 mm
Profondeur/longueur nette du produit:
198 mm
Poids net du produit:
4.7 kg
Technique
Tension nominale de fonctionnement:
208 ... 600 V AC
Tension d'alimentation de commande nominale (Us):
100 ... 250 V AC
Tension nominale du circuit de commande (Uc):
24 V DC
Fréquence nominale (f):
50/60 Hz
Circuit principal 50 / 60 Hz
Puissance nominale de fonctionnement - Connexion en ligne (Pe):
(230 V) 30 kW
(400 V) 55 kW
(500 V) 75 kW
Courant nominal de fonctionnement - Connexion en ligne (Ie):
105 A
Puissance nominale de fonctionnement - Connexion Delta Intérieure:
at 230 V 55 kW
at 400 V 90 kW
at 500 V 110 kW
Courant nominal de fonctionnement - Connexion en triangle intérieur:
181 A
Pourcentage du facteur de service:
100 %
Protection contre les surcharges:
Built-in electronic overload protection
Surcharge électronique intégrée:
Yes
Capacité de démarrage au courant nominal maximal Ie:
4xIe for 10s
Temps de rampe:
1 ... 120 second [unit of time]
Tension initiale au démarrage:
10 ... 99 %
Rampe spéciale de réduction de tension:
100 ... 10 %
Fonction de limitation de courant:
1.5 ... 7.5 xle
Commutateur pour connexion Delta intérieure:
Oui
Relais de signal de marche:
Oui
Relais de signal de dérivation:
Yes
Relais de signal de défaut:
Yes
Relais de signal de surcharge:
Oui
Sorties analogiques:
0…10 V, 0…20 mA, 4…20 mA
Indication du signal Prêt à démarrer/Veille ON (LED):
Green
Indication du signal en marche R (LED):
Green
Protection d'indication de signal (LED):
Jaune
Signal d'indication de défaut (LED):
Red
Communication:
Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Degré de protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Type de terminal:
Serre-câble
Capacité de connexion du circuit principal:
Hole Diameter 8.5 mm
Connexion du circuit de contrôle de capacité:
Rigid 1 x 2.5 mm²
Circuit d'alimentation de capacité de connexion:
Rigid 1 x 2.5
Couple de serrage:
Circuit principal 8 N·m
Type principal du produit:
PSTX105
Fonction:
Auto phase sequence detection
Automatic restart
Current limit
Current limit ramp
Dual current limit
Dynamic brake
Electricity metering
Electronic overload Time-to-cool
Emergency mode
Event log
Fonction de protection:
Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
Détails de l'avertissement:
Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning
Technique UL/CSA
Puissance nominale UL/CSA:
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
Tension de fonctionnement maximale UL/CSA:
Circuit principal 600 V
Couple de serrage UL/CSA:
Circuit principal 70.8
Environnemental
Température de l'air ambiant:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Conformité des matériaux
Modèle de rapport sur les minéraux de conflit (CMRT):
CMRT - Conflict Minerals Reporting Template
Déclaration REACH:
REACh Declaration for all Softstarters
Informations RoHS:
RoHS II Declaration for all Softstarters
Statut RoHS:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
f3a0566c-5aad-4ac9-94d0-4c2d5492623c China
Loi sur le contrôle des substances toxiques - TSCA:
Toxic Substances Control Act (TSCA) declaration for Softstarters
DEEE B2C / B2B:
Business To Business
Catégorie DEEE:
5. Petit équipement (Dimensions extérieures inférieures à 50 cm)
Certificats et déclarations
Certificat CQC:
CN: CQC2014010304744405 / SE: CQC2014010304724380
Déclaration de conformité - CCC:
CN: 2020980304001091 / SE: 2020980304001489
Déclaration de conformité - CE:
CE Déclaration de conformité - Softstarters - PSTX30...PSTX1250
Certificat DNV:
DNV Certificate, PSTX30...PSTX1250
Informations sur l’emballage
Largeur du niveau d’emballage 1:
200 mm
Profondeur/Longueur du niveau d’emballage 1:
282 mm
Hauteur du niveau d’emballage 1:
388 mm
Poids brut du colis niveau 1:
5.7 kg
Code EAN du niveau d’emballage 1:
7320500501313
Nombre d’unités au niveau d’emballage 1:
box 1 pièce
Classifications et normes externes
Code de classification des objets:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
Code de catégorie granulaire IDEA (IGCC):
4740 >> Soft starter
